产品规格

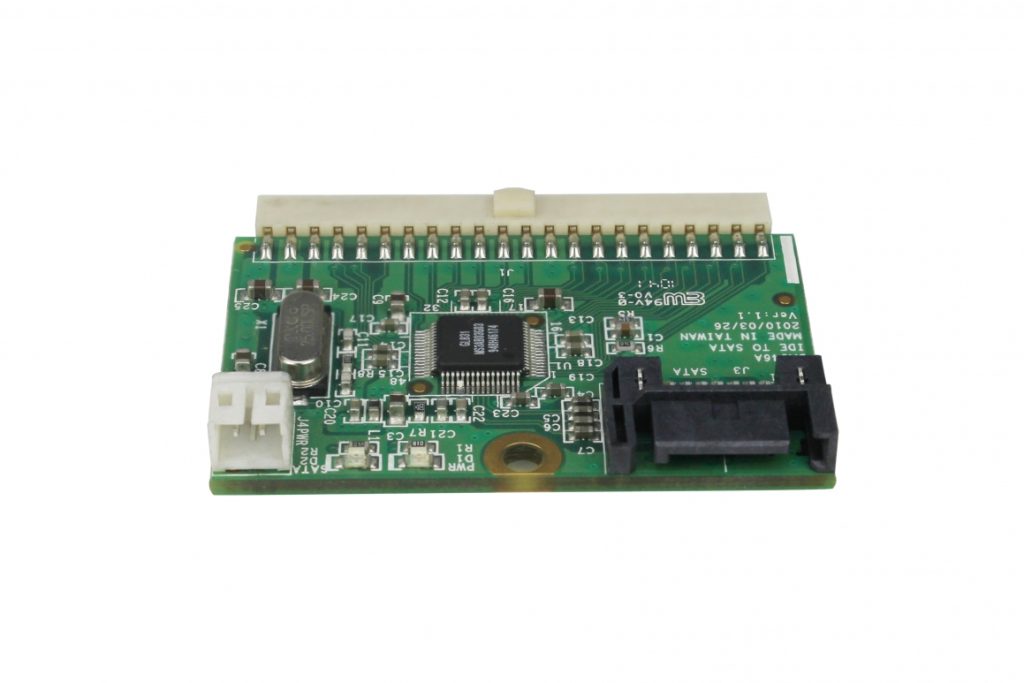

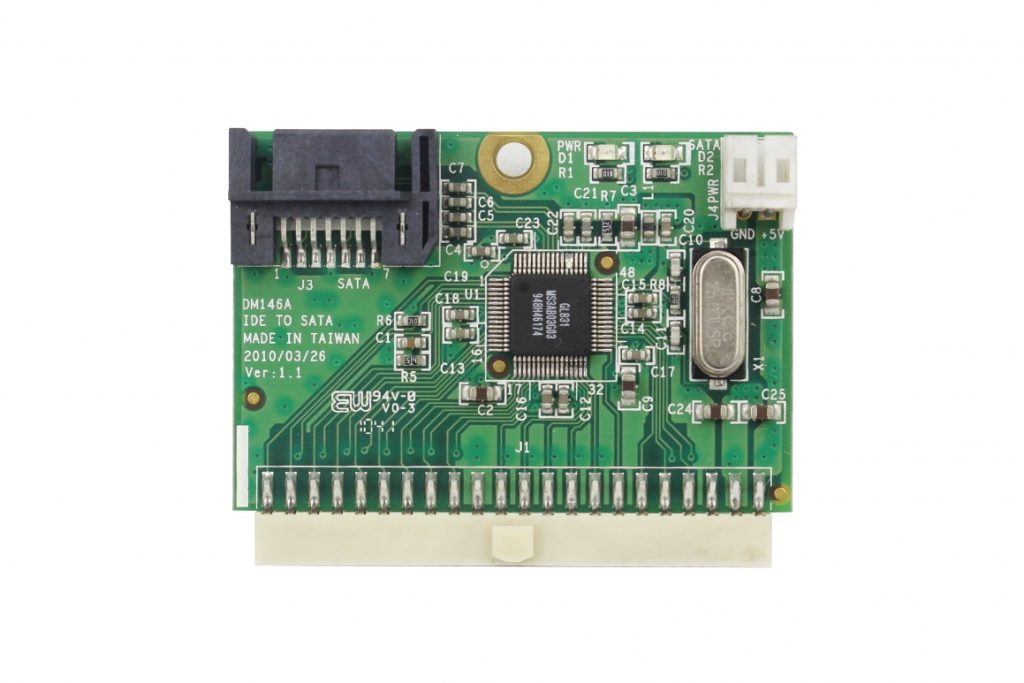

- IDE (44pin) to SATA
- GL831 PATA to SATA controller
- Complies with Serial ATA specification rev. 2.6.
| Doc. # | Subject | Date | |
|---|---|---|---|
| IDE_SATA_datasheet | IDE-SATA26-V-44 Datasheet | Datasheet | 2018-04-01 |
| 特征 | Converts standard IDE to SATA interface Complies with ATA/ATAPI-6 specification rev 1.0 Support 16-bit Multiword DMA mode and Ultra DMA mode interface Complies with Serial ATA specification rev. 2.6 |
| 芯片组 | GL831 SATA to PATA Controller |
| 重量 | 10g |
| 尺寸 | 48 X 33mm (1.89 x 1.3 inches) |
| 工作温度 | 0°C ~ +70°C |
- IDE-SATA26-V-44 x1
- CABLE-SATA-30CM x1
