产品规格

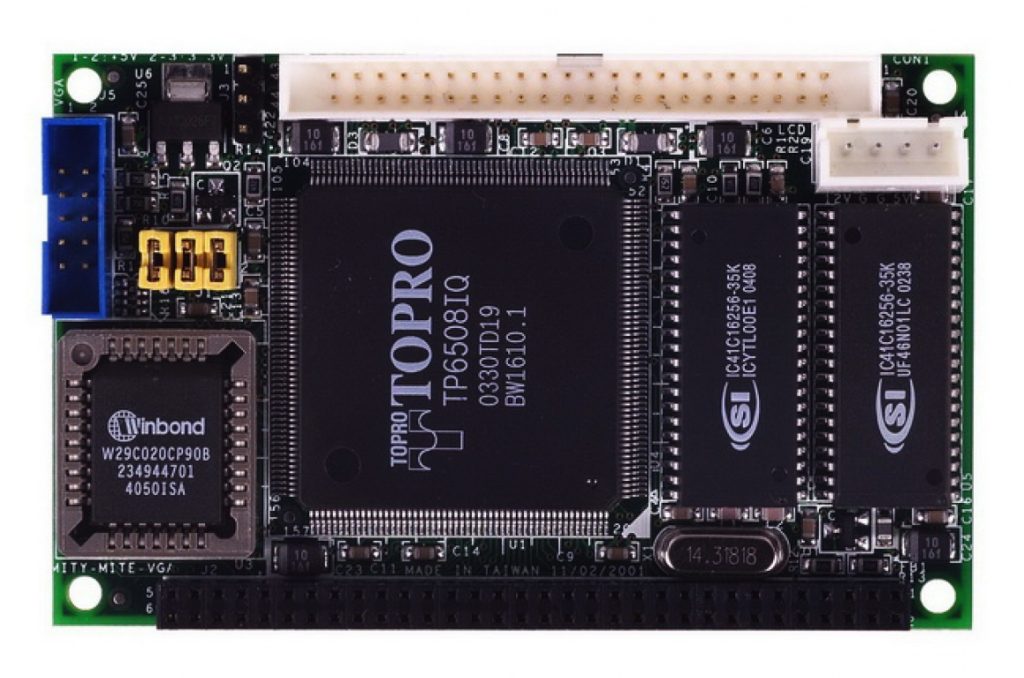

- VGA card for VSX-6117 and VDX-6317
- TOPRO TP6508IQ w/1MB EDO RAM
- Resolution 1027×768 max. , 256 colors
- VGA or 18-bit TTL
| 芯片组 | TOPRO TP6508IQ VGA and Mono/STN/DSTN/TFT Flat Panel interface support |
| 总线 | 16-bit x-ISA interface |
| VGA存储器 | Onboard 1MB EDO RAM, support resolution up to 1024 x 768, 256 colors |
| 端口 | 2.0mm 64-pin socket for 16-bit x-ISA interface x1 2.0mm 44-pin box header for LCD x1 2.0mm 10-pin box header for VGA x1 2.54mm 4-pin wafer for +12V, -12V, -5V DC-in x1 |
| 功率要求 | Single Voltage +5V @ 200mA |
| 重量 | 32g |
| 尺寸 | 80 x 50mm (3.14 x 1.96 inches) |
| 工作温度 | -20°C ~ +60°C |
