产品规格
- Support ICOP’s VDX & VSX SBC series only
- 18-bit TTL to LVDS converter
- SN75LVDS84 FLATLINK transmitter
- LCD BIOS available for resolution 640×480 upto 1024×768
| Doc. # | Subject | Date | |
|---|---|---|---|
| ICOP_0096_datasheet | ICOP-0096 Datasheet | Datasheet | 2018-04-01 |
| 芯片组 | T.I. SN75LVDS84 FLATLINK TRANSMITTERS |

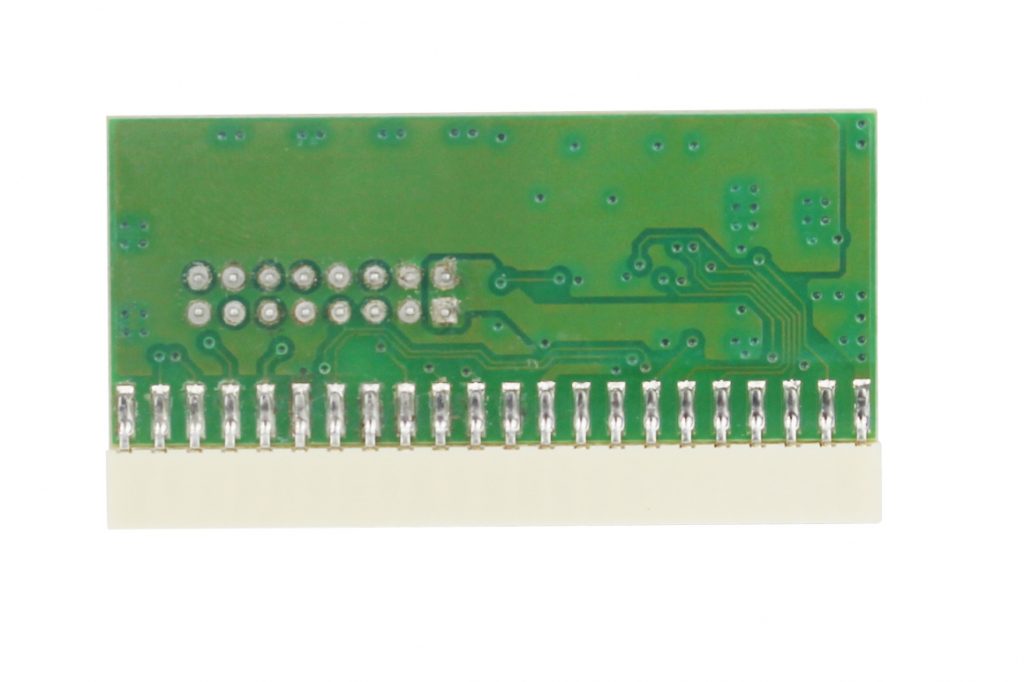

| 端口 | 2.0mm Ø, 44-pin box header for TFT flat panel x1 2.0mm Ø, 16-pin pin header for connection to AUO LVDS Panel display x1 |
| 重量 | 10g |
| 尺寸 | 44mm x 21mm (1.73 x 0.82 inches) |
| 工作温度 | 0°C ~ +70°C |
