产品规格

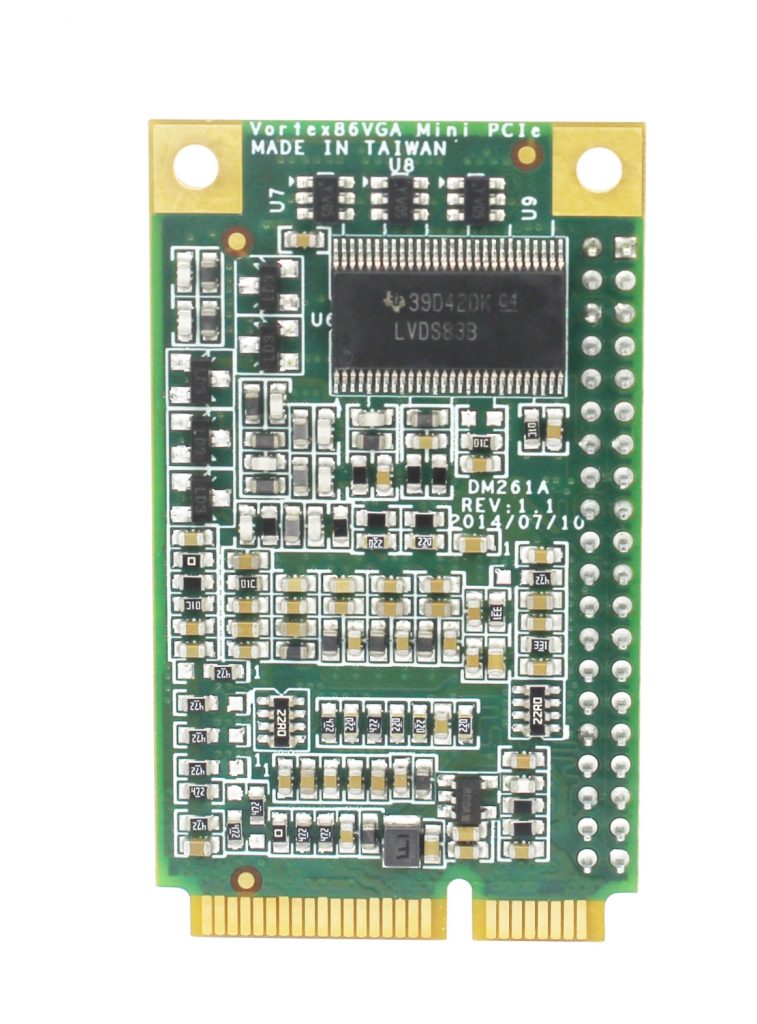

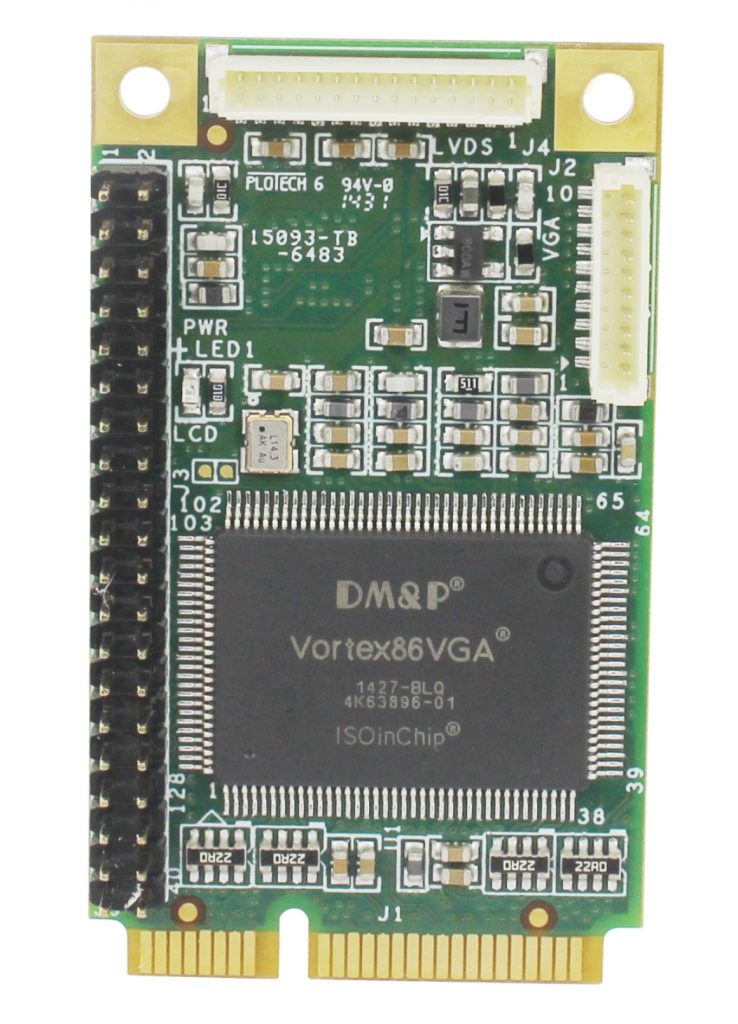

- Mini-PCIe VGA card
- Resolution 1024×768 max. @60Hz
- Build-in 4Mbyte Pseudo SRAM
- VGA or 24-bit TTL
| 芯片组 | Vortex86VGA |
| 显示器 | VGA, TFT-LCD, and 24-bit LVDS Support Resolution support up to 1024 x 768 @ 60Hz VESA DDC Support |
| 工作温度 | -20°C ~ +70°C |
| MINIPCIE-9160 | Mini PCI-E VGA card (For VEX series only) |
