产品规格

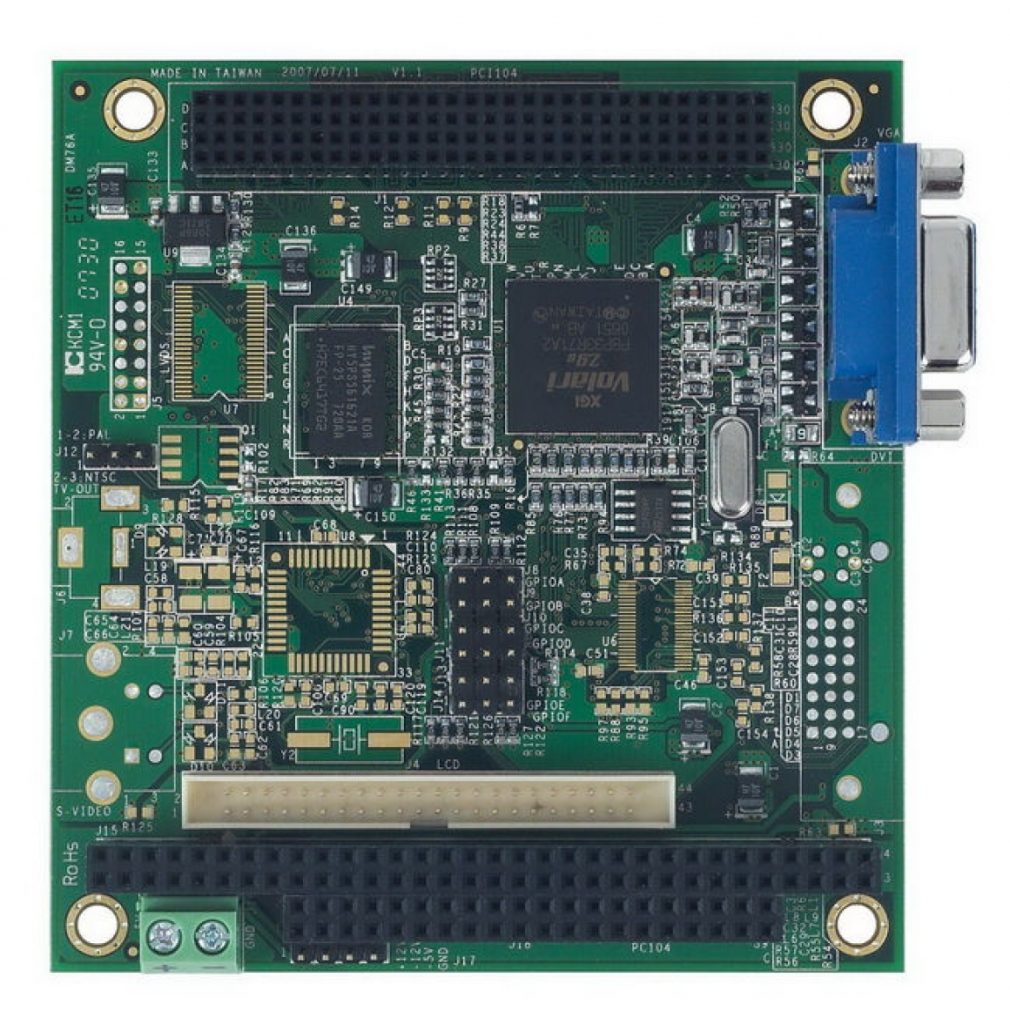

- PC/104+ VGA card ( PCI bus)
- XGI Volari Z9s w/32MB DDR2
- Resolution 1600×1200 max. , 16M colors
- VGA or 24-bit TTL
| 芯片组 | XGI Volari Z9s Chipset 32-bit PCI bus Support 12-bit, 18-bit, and dual 12-bit Digital Interface Support VGA, and Flat Panel Display |
| BIOS | VGA/LCD BIOS |
| 视频存储器 | Onboard 32MB DDR2 Resolution up to 1600 x 1200 @16M colors |
| 总线 | PC/104+ standard compliant |
| 端口 | 2.0mm 44-pin box header for LCD x1 2.54mm 4-pin header for +12V, -12V, -5V DC-in x1 External 15-pin D-Sub female connector for VGA x1 |
| 功率要求 | Single Voltage +5V @ 200mA |
| 重量 | 77g |
| 尺寸 | 90 x 96mm (3.54 x 3.77 inches) |
| 工作温度 | -20°C ~ +70°C -40°C ~ +85°C (Optional) |
