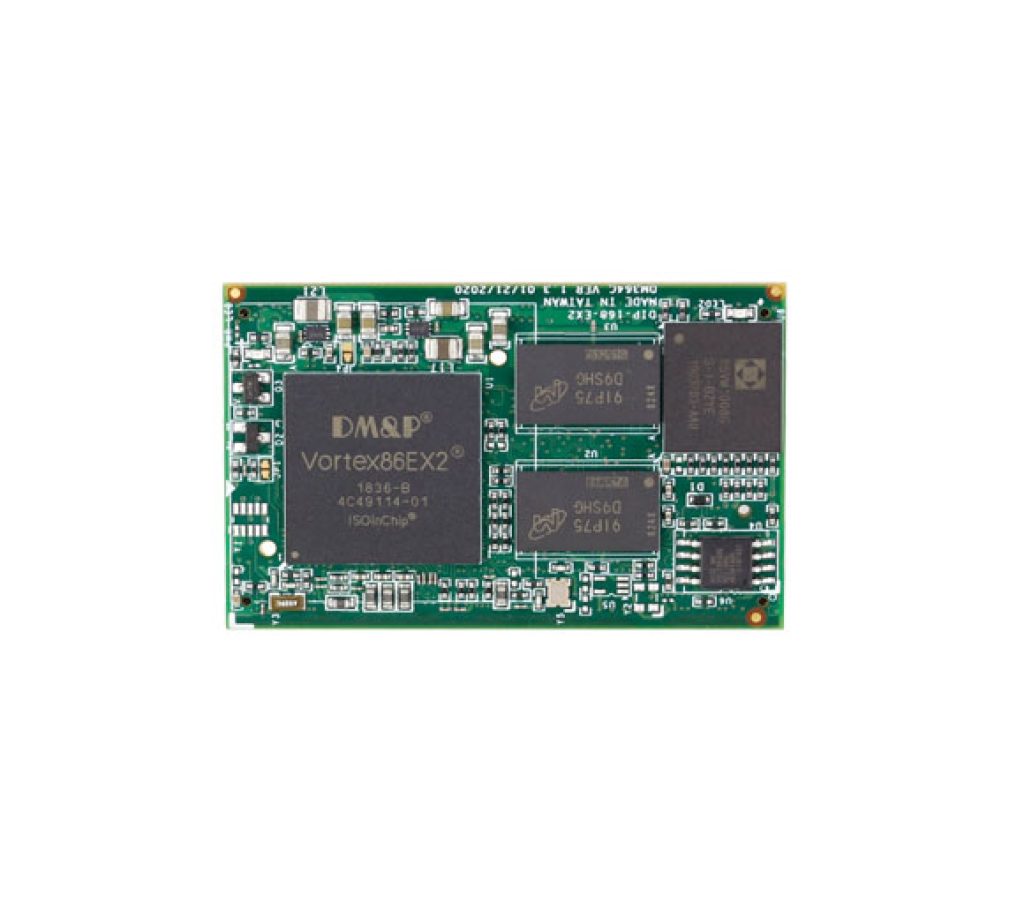

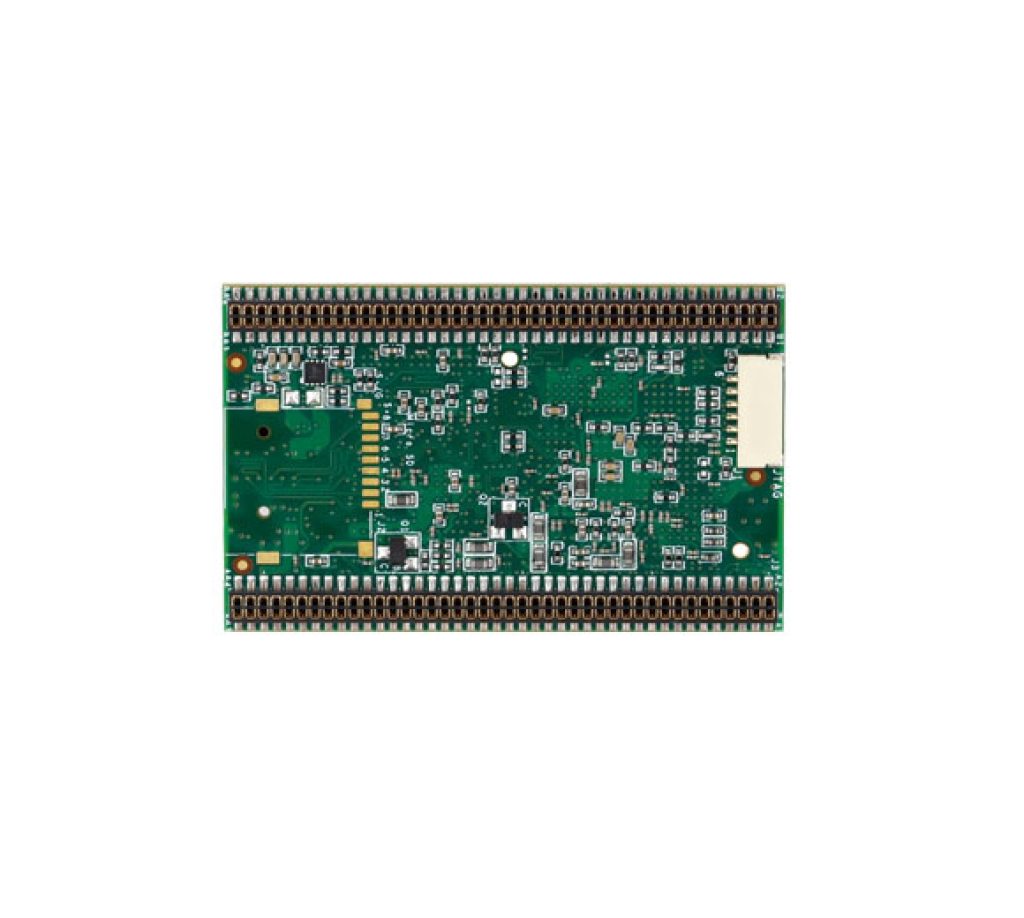

VEX2-DIP168是一款35mm（长）x 55mm（宽），168针，单+5V输入，带Vortex86EX2内置512MB/1GB DDR3的模块上系统；还可以利用Vortex 86EX2可编程I/O作为功能强大、灵活、小巧、低功耗的模块。
Vortex86 Website: https://www.vortex86.com/
产品规格
- DM&P SoC Vortex86EX2- 600MHz
- 512MB / 1GB DDR3 onboard
- 10S(Max.)/2U/LAN/LPT/2CAN/2I2C/16ADC 12bit/HDA/2PCIE x1/120GPIO(Max.)/SD or eMMC
- Operation Temperature: -20 ~ +70°C / -40 ~ +85°C (Optional)
- ISA bus supported
- Optional: Touch Controller
- Optional: Onboard eMMC / MicroSD socket
| Doc. # | Subject | Date | |
|---|---|---|---|
| VEX2-DIP168_Datasheet | VEX2-DIP168 Datasheet | Datasheet | 2021-10-29 |
| Doc. # | Subject | Date | |
|---|---|---|---|
| VEX2-DIP168_UM_v1 | VEX2-DIP168 Manual | Manual | 2021-10-29 |
| 处理器 | DM&P SoC CPU Vortex86EX2 600MHz | |||||
| RAM | 512MB/1GB DDR3 Onboard | |||||
| BIOS | Coreboot BIOS | |||||
| Bus | PCI Express x2 | ISA | ||||
| LAN | Integrated 10/100Mbps Ethernet | |||||
| 磁盘支持 | Micro SD/eMMC (Option) | |||||
| I/O接口 | USB v2.0 port x2 | |||||
| I/O配置支持多达124个引脚 | GPIO up to 120-bit ADC 12-bit channel x16 CAN x2 ISA Printer Keyboard WatchingDog Timer | COM port x10 (max.) I²C x2 SPI x2 HD Audio SD/MMC LAN MTBF | ||||
| 功率要求 | Single Voltage +5VDC @ 360mA | |||||
| 工作温度 | -20°C to +70°C -40°C to +85°C (Option) | |||||
| 尺寸 | 35mm(L) x 55mm(W) | |||||
| 重量 | 15g | |||||
| 操作系统支持 | DOS FreeBSD Yocto 3.0/4.0 | Windows CE6/Embedded Compact 7 VxWorks | X-Linux QNX | |||
| 品名 | 处理器速度 | 磁盘支持 | DRAM (DDR3L) | PCI-e | LAN | USB 2.0 |
| VEX2-DIP168-3NE1 | DM&P SoC Vortex86EX2 600MHz | Micro SD | 512MB | 2 | 1 | 2 |
| VEX2-DIP168-4NE1 | 1GB | |||||
| VEX2-DIP168-3EE1 | eMMC | 512MB | ||||
| VEX2-DIP168-4EE1 | 1GB |
