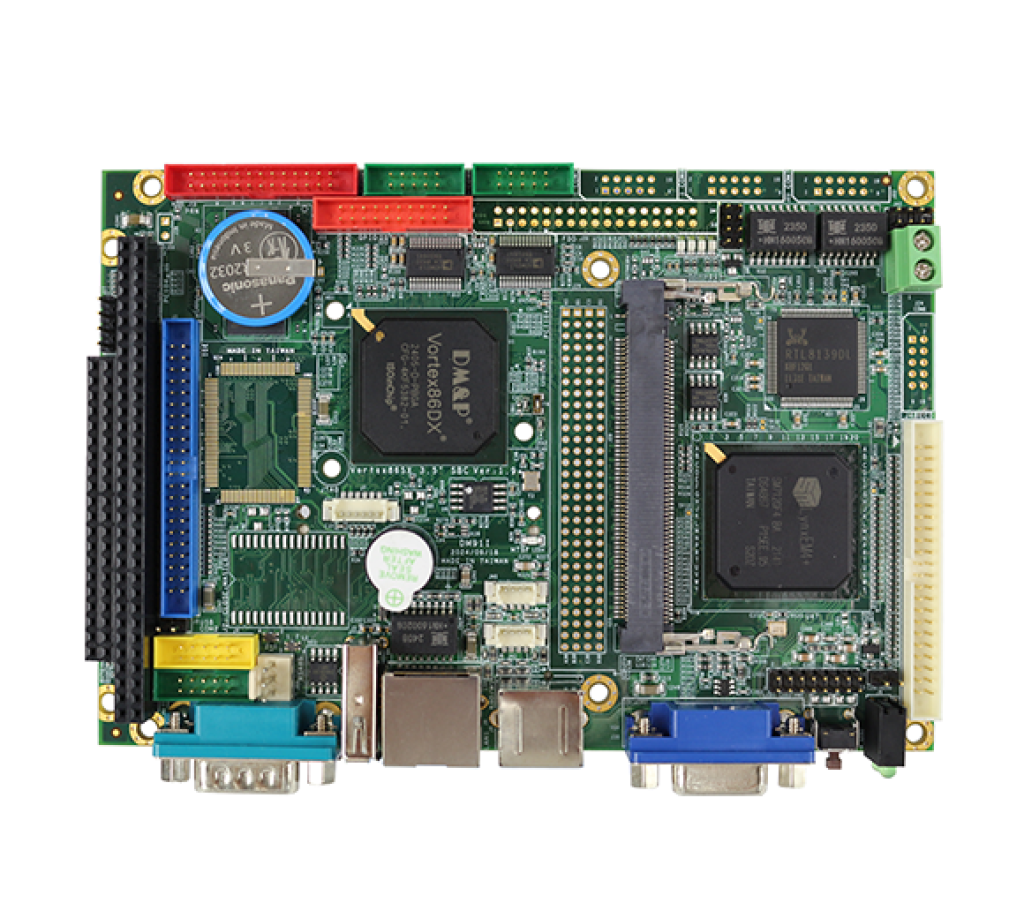

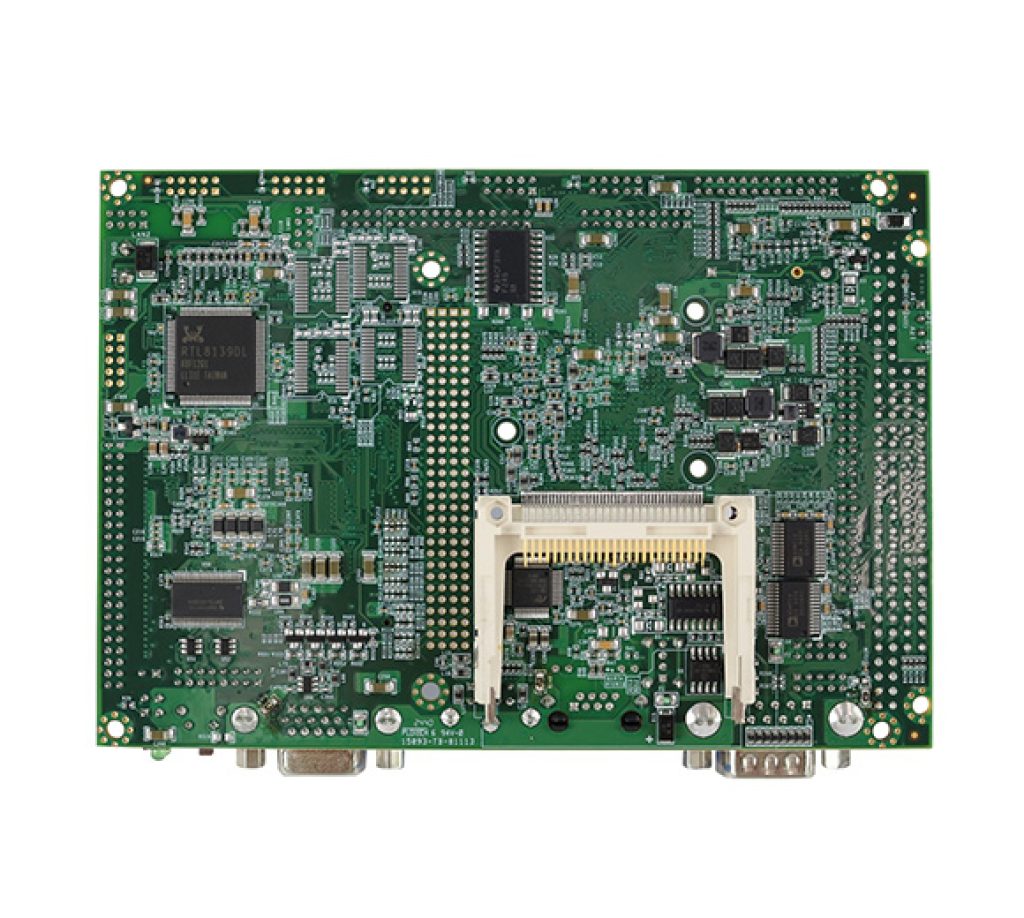

产品规格
- DM&P SoC Vortex86DX- 800MHz
- 256MB / 512MB DDR2 onboard
- 4S/3U/VGA/LCD/LVDS/3LAN/PWM/Audio/16GPIO/CF
- Operation Temperature: -20 ~ +70°C / -40 ~ +85°C (Optional)
- Onboard 4MB SPI Flash Disk
- PC/104 Connector Onboard
- Optional: PCI-104 Connector
| Doc. # | Subject | Date | |
|---|---|---|---|
| VDX-6326RD-NF-V2_UM_v2r0A | VDX-6326RD-NF-V2 Manual | Manual | 2024-12-19 |
| Doc. # | Subject | Date | |
|---|---|---|---|
| 6326RD-NF-V2_datasheet | VDX-6326RD-NF-V2 Datasheet | Datasheet | 2024-12-19 |
| 品名 | 处理器 (MHz) | DRAM (DDR2) | 存储器 | 显示器 | 网路 | RS232/RS485 | USB | Parallel | 16-bit GPIO | PC/104 | Mini PCI | 音频 |
| VDX-6326D-NF | 800MHz | 256MB | IDE 4MB SPI CF | VGA LVDS TFT-LCD | 3 | 3/1 | 3 | 1 | 1 | 1 | 1 | MIC-in Line-out |
| VDX-6326RD-NF-512 | 800MHz | 512MB | IDE 4MB SPI CF | VGA LVDS TFT-LCD | 3 | 3/1 | 3 | 1 | 1 | 1 | 1 | MIC-in Line-out |
| 处理器 | DM&P SoC CPU Vortex86DX – 800MHz | |||||
| RAM | 256/512MB DDR2 Onboard | |||||
| BIOS | AMI BIOS | |||||
| 总线 | PC/104 standard compliant | Mini PCI standard compliant | ||||
| 显示器 | SM712 Chipset with VGA, TFT-LCD, and 18-bit LVDS Flat Panel Interface VGA: Maximum resolution up to 1280 x 1024 @ 60Hz LVDS/TTL-LCD: Maximum resolution up to 1024 x 768 @ 60Hz | |||||
| 网路 | Integrated 10/100Mbps Ethernet x1 | Realtek 8100B 0/100Mbps Ethernet x2 | ||||
| Disk Support | IDE DoM | Compact Flash | Onboard 4MB SPI Flash Disk | |||
| SRAM Support | 512KB (Optional) | |||||
| I/O接口 | RS232 x3 16-bit GPIO x1 | RS232/422/485 x1 Audio | USB (Ver. 2.0)) x3 Parallel x1 | |||
| 端口 | 2.54mm 4-pin pin header for +12V, -12V, -5V, GND x1 2.54mm 104-pin PC/104 connector x1 2.0mm 44-pin box header for IDE x1 2.0mm 20-pin box header for 16-bit GPIO x1 1.25mm 4-pin wafer for Line-in/MIC-out x2 15-pin D-Sub female connector for VGA x1 Mini-DIN connector for Keyboard/Mouse x1 | 2.54mm 2-pin pin header for Reset x1 2.0mm 8-pin pin header for Ethernet x1 2.0mm 44-pin box header for LCD x1 2.0mm 10-pin box header for RS232 x3 0.8mm 124-pin Mini PCI connector x1 RJ45 connector for Ethernet x1 Type I/II Compact Flash Slot x1 | 2.54 3-pin pin header for RS485 x1 2.0mm 16-pin pin header for LVDS x1 2.0mm 26-pin box header for Parallel x1 2.0mm 10-pin box header for USB x1 9-pin D-Sub male connector for RS232 x1 USB connector x1 | |||
| 功率要求 | DC +5V @ 880mA | |||||
| 工作温度 | -20℃ – +70℃ -40℃ – +85℃ (Optional) | |||||
| 尺寸 | 102 x 146mm | |||||
| 重量 | 150g | |||||
| 操作系统 | Windows Embedded 2009 Linux Free BSD | Windows Embedded CE6.0 DOS VxWorks | Windows Embedded CE5.0 POS Ready (WePOS) | |||
