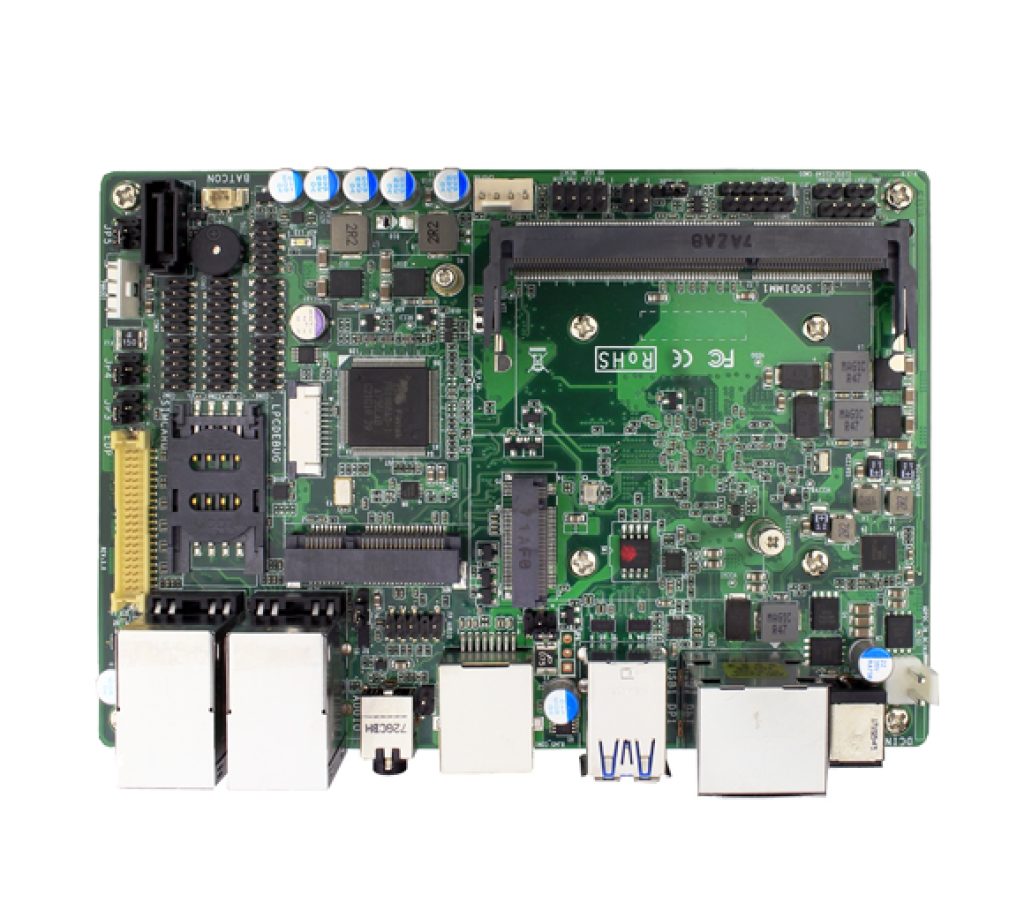

产品规格
- Intel® Apollo Lake J3455 – 1.5GHz
- DDR3L-1866MHz up to 8GB
- 6S/6U/2DP/eDP/2GLAN/Audio/8GPIO/I2C/MiniPCIE/M.2/SATA/MicroSD
- Operation Temperature: 0 ~ +60°C
| Doc. # | Subject | Date | |
|---|---|---|---|
| APL-35-J3455_datasheet | APL-35-J3455 Datasheet | Datasheet | 2022-10-28 |
| Doc. # | Subject | Date | |
|---|---|---|---|
| APL-35-J3455_UM_v2r0A | APL-35-J3455 Manual | Manual | 2024-04-01 |
| 处理器 | Intel® Apollo Lake J3455 2.30GHz (Burst) 1.50GHz Quad Core Intel® Apollo Lake N4200 2.50GHz (Burst) 1.10GHz Quad Core (Option) Intel® Apollo Lake N3350 2.40GHz (Burst) 1.10GHz Dual Core (Option) | ||
| RAM | DDR3L 1866MHz memory support up to 8GB in SO-DIMM slot x1 | ||
| BIOS | AMI BIOS | ||
| 显示器 | Intel® HD Graphics with MultiDisplay support eDP: resolution support up to 4096 x 2160@60Hz Display Port: resolution support up to 4096 x 2160@60Hz | ||
| 音频 | Realtek ALC888S HD Audio | ||
| 网路 | Intel® RTL8119I Gigabit Ethernet Controller | ||
| 扩充 | MiniPCIe (full-size) x1 | ||
| Disk Support | M.2 SATA x1 | Micro SD card slot x1 | SATA interface x1 |

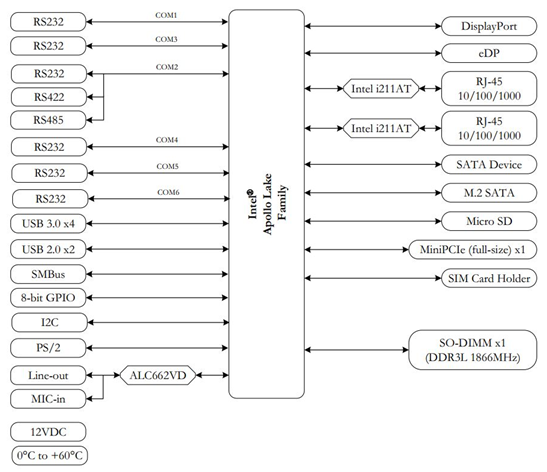

| I/O接口 | 8-bit GPIO x1 eDP x1 Line-out & MIC-in SMBus x1 | COM x6 (RS232/422/485 x1) GigaLan x2 PS/2 interface x1 USB (ver. 2.0) x2 | DisplayPort x2 I²C x1 SIM card holder x1 USB (ver. 3.0) x4 |
| 端口 | 4-pin wafer for SATA power output x1 6-pin header for PS/2 interface x1 10-pin header for GPIO x1 MiniPCI slot x1 Power Jack for 12VDC input x1 SIM card holder x1 | 4-pin header for I²C x1 7-pin SATA connector for SATA x1 40-pin wafer for eDP x1 M.2 slot (M key 2242) for M.2 SATA x1 RJ45 connector for COM x1 USB connector for USB3.0 x4 | 5-pin header for SMBus x1 9-pin header for COM x5 DisplayPort connector x2 Power Jack for Line-out/MIC-in x1 RJ45 connector for GigaLan x2 |
| 功率要求 | 12VDC standard input from the power jack or internal 2-pin power connector support for ATX/AT mode | ||
| 工作温度 | 0℃ to 60℃ | ||
| 尺寸 | 148 x 102 mm | ||
| 操作系统 | Windows 10 | Linux | |
