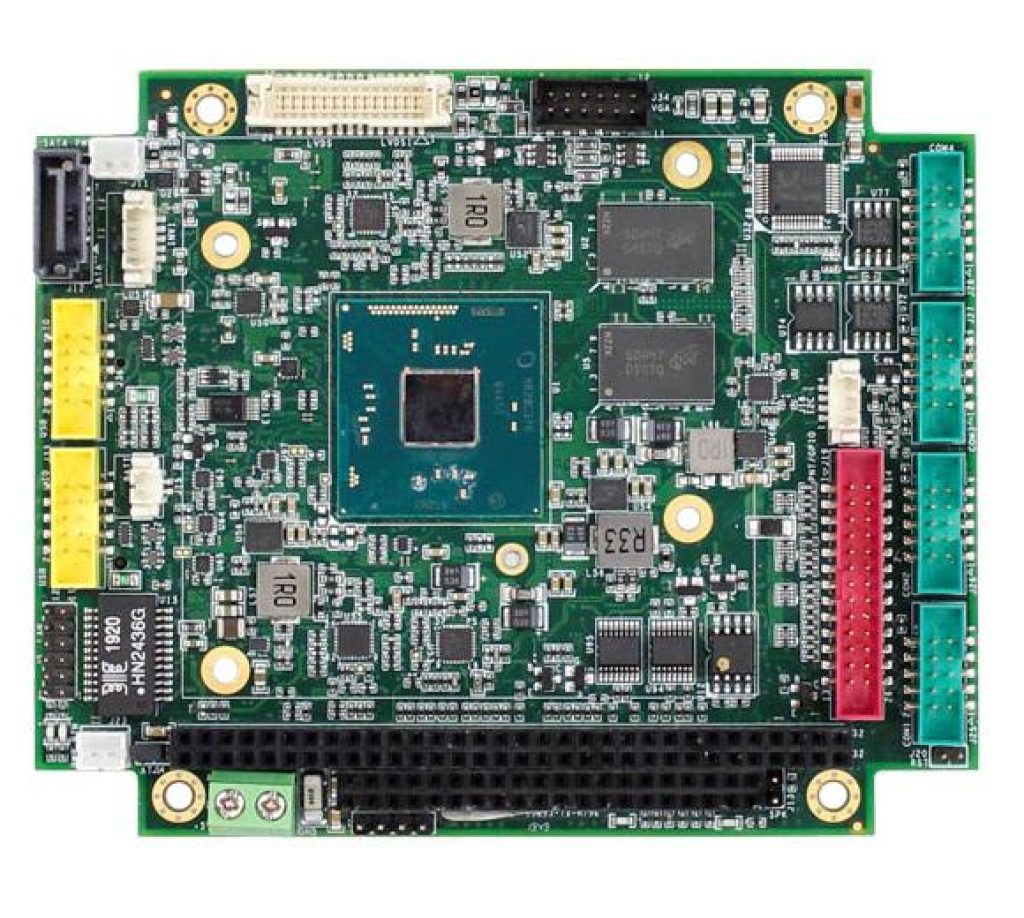

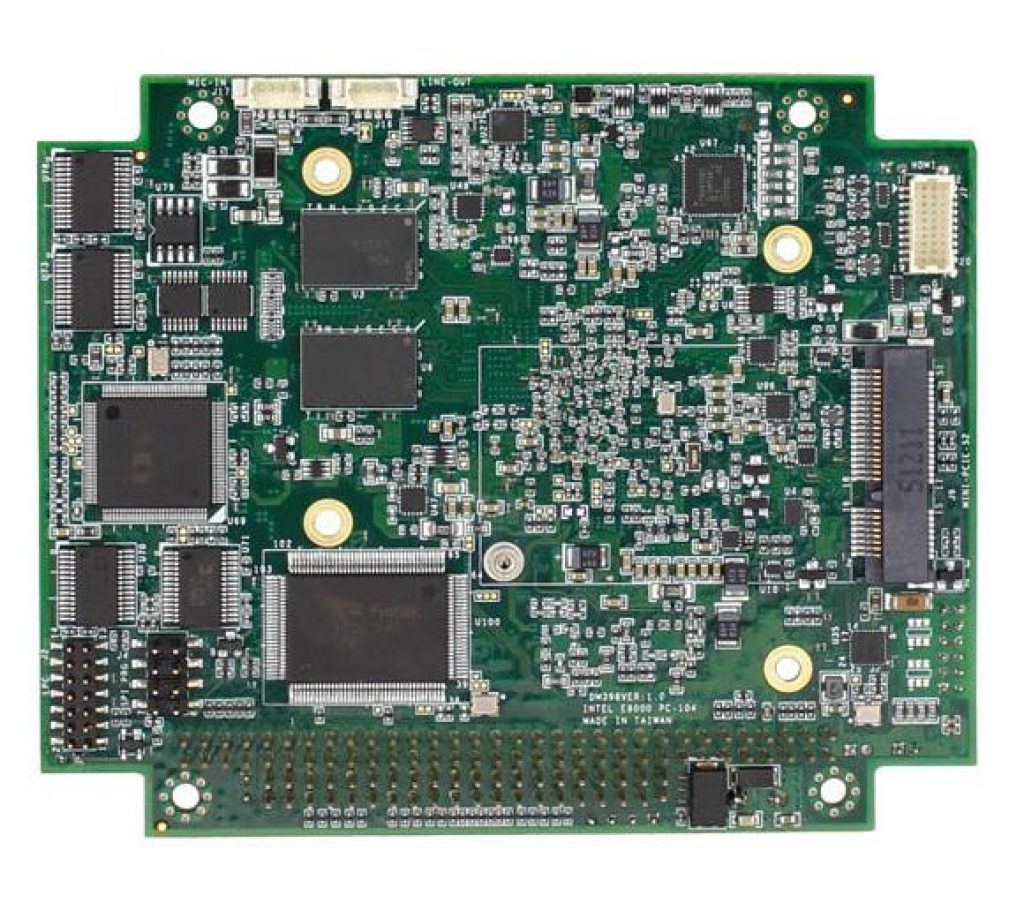

IBW-6954支持千兆局域网、4x COM、4x USB、I2C、并行、Mini-PCIe、HDMI、LVDS、VGA和SATA接口，用于开发用途的存储。
方框图：
产品规格
- Intel® Braswell x5-E8000 1.04GHz Quad Core
- 4GB DDR3L 1600 onboard
- 4S/4U/HDMI/VGA/LVDS/GLAN/AUDIO/LPT/MiniPCIE
- Operation Temperature: 0 ~ +55°C
| Doc. # | Subject | Date | |
|---|---|---|---|
| IBW-6954-E4_Datasheet | IBW-6954-E4_Datasheet | Datasheet | 2021-10-22 |
| Doc. # | Subject | Date | |
|---|---|---|---|
| IBW-6954_UM_v2r1A | IBW-6954 Manual | Manual | 2026-02-10 |
| 料号 | 处理器速度 | DRAM (DDR3L) | Disk Support | 显示器 | GigaLAN | COM | USB 2.0 | I²C | Parallel | 音频 |
| IBW-6954-E4 | (Intel® AtomTM x5-E8000) 1.04GHz | 4GB | mSATA SATA device Micro SD | VGA LVDS HDMI | 1 | 4 | 4 | 1 | 1 | MIC-in Line-out |
| IBW-6954-A4 | (Intel® Pentium® N3710) 1.60GHz | |||||||||
| IBW-6954-B4 | (Intel® Celeron® N3160) 1.60GHz | |||||||||
| CABLE-SET 6954 | Cable set for IBW-6954 (RS232 x4, USB x2, PRINT, Audio x2, LAN, VGA) | |||||||||
| 处理器 | Intel® AtomTM x5-E8000 2.00GHz(Burst) 1.04GHz Quad Core Intel® Pentium® N3710 2.56GHz(Burst) 1.6GHz Quad Core Intel® Celeron® N3160 2.24GHz(Burst) 1.6GHz Quad Core | ||
| RAM | 4GB DDR3L 1600 | ||
| BIOS | UEFI BIOS | ||
| 总线 | ISA Bus x1 | MiniPCIe(full-size) x1 | |
| 显示器 | Hardware decoding: H.265, MPEG2, MVC, VC-1, VP8, WMV9, and JPEG/MJPEG formats Hardware encoding: H.264, MVC, and JPEG/MJPEG formats VGA: resolution up to 1920 x 1200 @ 60Hz HDMI: resolution up to 2560 x 1600 @ 60Hz, 24bpp LVDS: resolution up to 1920 x 1200 @ 60Hz, in dual LVDS bus mode | ||
| 网路 | RTL8111H GbE | ||
| HD Audio | Realtek ALC262 VD | ||
| Disk Support | SATA device | mSATA device (Option) | |
| I/O接口 | COM x4 (2 for RS232/422/485) I²C x1 | USB 2.0 x4 Audio (Line-out/MIC-in) | Parallel/16-bit GPIO x1 (Option) |
| 端口 | 5.4mm 7-pin Standard SATA connector x1 2.0mm 10-pin box header for COM x4 2.0mm 2-pin header for Reset x1 2.0mm 14-pin header for LPC x1 1.25mm 4-pin header for I²C x1 HDMI connector x1 Mini PCIe slot x1 | 2.0mm 12-pin header for VGA port x1 2.0mm 12-pin header for LAN port x1 2.0mm 2-pin box header for SATA Power x1 2.00mm 10-pin box header for USB x4 1.25mm 2-pin header for COMS battery x1 2-pin header for Speaker Terminal block for power input x1 | 2.0mm 26-pin box header for Printer x1 2.0mm 2-pin header for Power button x1 2.0mm 2-pin box header for AT/ATX mode x1 1.25mm 4-pin wafer for MIC-in/Line-out x2 1.25mm 30-pin wafer for LVDS x1 Standard PC/104 connector x1 |
| 功率要求 | 5VDC | ||
| 工作温度 | 0°C to +55°C (with airflow) | ||
| 尺寸 | 116mm x 96mm | ||
| 重量 | 81g | ||
| 操作系统 | Windows 10 | Windows 7 (64bits) | Linux |
