特点:
- 支持英特尔®第12/13代酷睿/赛扬/赛扬台式机CPU
- 全套模具成型，标准19英⼨4U上架式机箱
- 可安装标准ATX主板，支持标准4U电源
- 最多支持7个插槽的全高插卡扩展，满足多个行业应用的需求
- 人性化设计，机箱前系统风扇免工具维护
- 精心设计的免工具PCIe扩展卡固定架、具有更高的抗震性
- 最多可选8个3.5英寸抗震抗冲击硬盘位
- 可选2个5.25英寸光驱安装盒
- 前⾯板USB、开关机设计，电源及存储状态显⽰，更易于系统维护
- 支持非法开箱报警，可锁前门，防止未经许可的访问
阿普奇 4U机架式工业计算机IPC400-Q670支持英特尔®第12/13代酷睿/赛扬/赛扬台式机CPU，拥有完整的模具成型，标准19英寸4U机架式机箱。此款产品能够安装标准ATX主板和支持标准4U电源，同时支持多达7个插槽的全高度卡扩展，满足多个行业的应用需求。人性化设计，机箱前部配置系统风扇，无需工具即可进行维护。精心设计的无工具PCIe扩展卡座具有更高的抗震能力。可选高达8个3.5英寸抗震耐冲击的硬盘仓位，另有可选的2个5.25英寸光驱安装箱。前面板USB接口、开关设计、电源和存储状态显示，更容易进行系统维护。支持非法拆箱报警，并可锁定前门以防止未经授权访问。阿普奇4U机架式工业计算机IPC400-Q670旨在为工业环境提供高性能和可靠性。无论是在制造业、交通运输、能源、医疗保健，还是其他行业，IPC400-Q670都能满足复杂的计算和数据处理需求。其坚固的机箱和设计精良的扩展插槽使其能够在恶劣的工业环境下运行，并且无需频繁维护。此款产品还特别注重安全性，支持非法拆箱报警并具有前门锁功能，避免未经授权的访问，保护重要数据和设备安全。
总之，阿普奇 4U机架式工业计算机IPC400-Q670是一款专为工业领域设计的高性能、可靠、安全的计算机产品，将成为您工业自动化系统的理想选择。
| Model | IPC400-Q670 | |
| Processor System | CPU | Support Intel® 12/13th Generation Core / Pentium/ Celeron Desktop CPU |
| TDP | 125W | |
| Socket | LGA1700 | |
| Chipset | Q670 | |
| BIOS | AMI 256 Mbit SPI | |
| Memory | Socket | 4 * Non-ECC U-DIMM Slot, Dual Channel DDR4 up to 3200MHz |
| Capacity | 128GB, Single Max. 32GB | |
| Graphics | Controller | Intel® UHD Graphics |
| Ethernet | Controller | 1 * Intel i225-V/LM 2.5GbE LAN Chip (10/100/1000/2500 Mbps, RJ45)1 * Intel i219-LM/V GbE LAN Chip (10/100/1000 Mbps, RJ45) |
| Storage | SATA | 4 * SATA3.0 7P Connector, Support RAID 0, 1, 5, 10 |
| M.2 | 1 * M.2 Key-M (PCIe x4 Gen 4 + SATA3.0, NVMe/SATA SSD Auto Detect, 2242/2260/2280) | |
| Expansion Slots | PCIe | 2 * PCIe x16 slot (Gen 5, x16 /NA signal or Gen 4, x8 /x8 signal)1 * PCIe x8 slot (Gen 4, x4 signal)2 * PCIe x4 slot (Gen 4, x4 signal)1 * PCIe x4 slot (Gen 3, x4 signal) |
| PCI | 1 * PCI slot | |
| Mini PCIe | 1 * Mini PCIe (PCIe x1 Gen 3 + USB 2.0, with 1 * SIM Card) | |
| M.2 | 1 * M.2 Key-B (USB3.2 Gen 1×1 (co-lay with usb header, default), with 1 * SIM Card, 3042/3052) | |
| Front I/O | Ethernet | 2 * RJ45 |
| USB | 4 * USB3.2 Gen 2×1 (Type-A)4 * USB3.2 Gen 1×1 (Type-A) | |
| Display | 1 * DP1.4: max resolution up to 3840*2160 @ 60Hz 1 * HDMI2.0: max resolution up to 3840*2160 @ 30Hz | |
| Audio | 3 * 3.5mm Jack (Line-out + Line-in + MIC) | |
| Serial | 2 * RS232/422/485 (COM1/2, DB9/M, Full Lanes, BIOS Switch) | |
| Rear I/O | USB | 2 * USB2.0 (Type-A) |
| Button | 1 * Power Button | |
| LED | 1 * Power status LED1 * Hard drive status LED | |
| Internal I/O | USB | 1 * USB3.2 Gen 1×1 (Vertical TYEP-A)2 * USB2.0 (One of two shares a signal with the M.2 Key-B, optional, Header) |
| COM | 4 * RS232 (COM3/4/5/6, Header, Full Lanes) | |
| Display | 1 * VGA: max resolution up to 1920*1200 @ 60Hz (wafer)1 * eDP: max resolution up to 1920*1200 @ 60Hz (Header) | |
| Audio | 1 * Front Audio (Line-Out + MIC, Header)1 * Speaker (3W (per channel) into a 4Ω Loads, wafer) | |
| GPIO | 1 * 16 bits DIO (8DI and 8DO, wafer) | |
| SATA | 4 * SATA 7P Connector | |
| LPT | 1 * LPT (Header) | |
| PS/2 | 1 * PS/2 (wafer) | |
| SMBus | 1 * SMBus (wafer) | |
| FAN | 2 * SYS FAN (Header)1 * CPU FAN (Header) | |
| Power Supply | Type | ATX |
| Power Input Voltage | AC power supply, voltage and frequency shall be based on the ATX power supply provided | |
| RTC Battery | CR2032 Coin Cell | |
| OS Support | Windows | Windows 10/11 |
| Linux | Linux | |
| Watchdog | Output | System Reset |
| Interval | Programmable 1 ~ 255 sec | |
| Mechanical | Enclosure Material | SGCC |

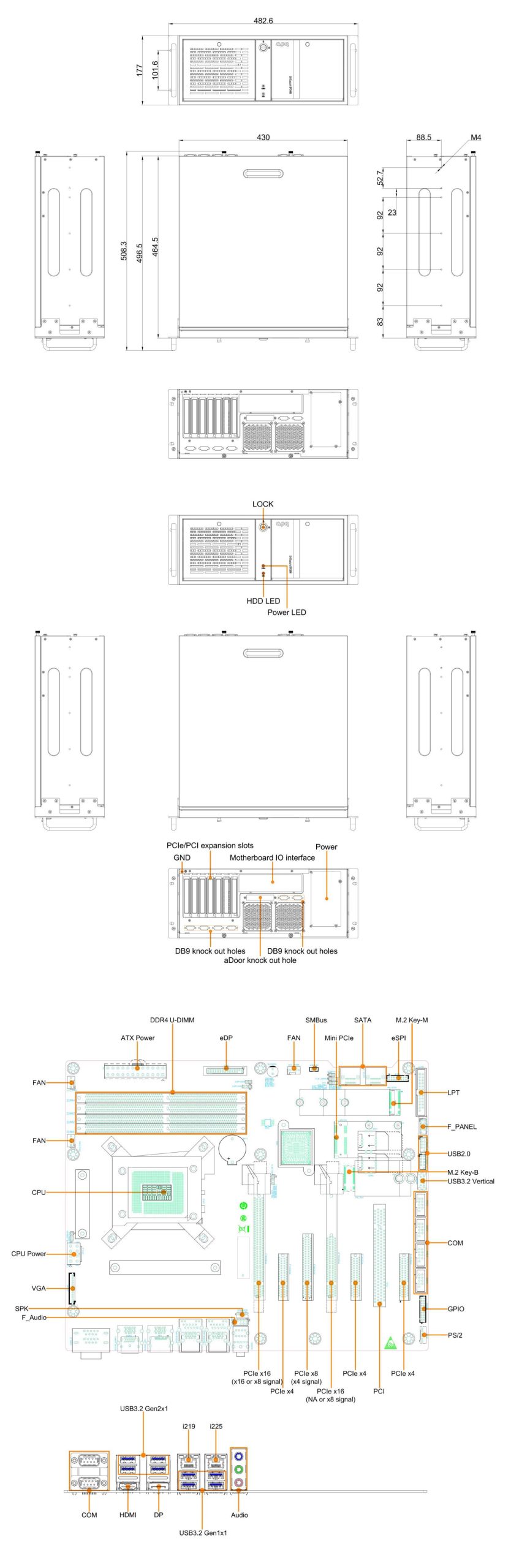

| Dimensions | 482.6mm(L) * 464.5mm(W) * 177mm(H) | |
| Mounting | Shelf mounted installation | |
| Environment | Heat Dissipation System | PWM fan cooling |
| Operating Temperature | 0 ~ 50℃ | |
| Storage Temperature | -20 ~ 70℃ | |
| Relative Humidity | 10 to 95% RH (non-condensing) | |
