特点:
- Supports Intel ® 10/11th Generation Core/Pentium/Celeron Desktop CPU
- 全套模具成型，标准19英⼨4U上架式机箱
- 可安装标准ATX主板，支持标准4U电源
- 最多支持7个插槽的全高插卡扩展，满足多个行业应用的需求
- 人性化设计，机箱前系统风扇免工具维护
- 精心设计的免工具PCIe扩展卡固定架、具有更高的抗震性
- 最多可选8个3.5英寸抗震抗冲击硬盘位
- 可选2个5.25英寸光驱安装盒
- 前⾯板USB、开关机设计，电源及存储状态显⽰，更易于系统维护
- 支持非法开箱报警，可锁前门，防止未经许可的访问
阿普奇4U上架式工控机IPC400-Q470是一款专为工业应用打造的强大边缘计算设备，具有卓越的性能和功能特点。这款工控机采用最新的Intel® 10/11th Generation Core/Pentium/Celeron Desktop CPU，提供强大的数据处理能力，快速应对各种复杂的边缘计算任务。同时，IPC400-Q470支持标准ATX主板和4U电源，确保系统稳定运行。最多支持7槽位全高卡扩展，满足多种行业应用需求。机箱前置系统风扇采用免工具维护设计，简化了散热系统的清洁和更换过程。精心设计的免工具PCIe扩展卡固定架具有更高的抗震性，减少设备损坏的风险。存储方面，4U上架式工控机IPC400-Q470包括最多8个3.5英寸抗震抗冲击硬盘位和2个5.25英寸光驱安装盒，满足大容量存储需求。同时，前面板USB和开关机设计以及电源和存储状态显示使系统维护更加便捷。具备非法开箱报警功能和可锁前门，防止未经许可的访问。这些安全特性增强了设备的安全防护能力，确保工业数据的安全性和完整性。
总之，阿普奇4U上架式工控机IPC400-Q470凭借出色的计算能力、强大的扩展性、人性化的维护设计和卓越的安全性能等特点，适用于各种工业环境下的边缘计算应用。
| Model | IPC400-Q470 | |
| Processor System | CPU | Support Intel® 10/11th Generation Core / Pentium/ Celeron Desktop CPU |
| TDP | 125W | |
| Socket | LGA1200 | |
| Chipset | Q470 | |
| BIOS | AMI 256 Mbit SPI | |
| Memory | Socket | 4 * Non-ECC U-DIMM Slot, Dual Channel DDR4 up to 2933MHz |
| Capacity | 128GB, Single Max. 32GB | |
| Graphics | Controller | Intel® UHD Graphics |
| Ethernet | Controller | 1 * Intel i210-AT GbE LAN Chip (10/100/1000 Mbps, RJ45)1 * Intel i219-LM/V GbE LAN Chip (10/100/1000 Mbps, RJ45) |
| Storage | SATA | 4 * SATA3.0 7P Connector, Support RAID 0, 1, 5, 10 |
| M.2 | 1 * M.2 Key-M (PCIe x4 Gen 3 + SATA3.0, NVMe/SATA SSD Auto Detect, 2242/2260/2280) | |
| Expansion Slots | PCIe | 2 * PCIe x16 slot (Gen 3, x16 /NA signal or Gen 3, x8 /x8 signal)3 * PCIe x4 slot (Gen 3, x4 signal) |
| PCI | 2 * PCI slot | |
| Mini PCIe | 1 * Mini PCIe (PCIe x1 Gen 3 + USB 2.0, with 1 * SIM Card) | |
| Front I/O | Ethernet | 2 * RJ45 |
| USB | 2 * USB3.2 Gen 2×1 (Type-A)4 * USB3.2 Gen 1×1 (Type-A)2 * USB2.0 (Type-A) | |
| Display | 1 * DP1.4: max resolution up to 3840*2160 @ 60Hz 1 * HDMI1.4: max resolution up to 3840*2160 @ 30Hz | |
| Audio | 3 * 3.5mm Jack (Line-out + Line-in + MIC) | |
| Serial | 2 * RS232/422/485 (COM1/2, DB9/M, Full Lanes, BIOS Switch) | |
| Rear I/O | USB | 2 * USB2.0 (Type-A) |
| Button | 1 * Power Button | |
| LED | 1 * Power status LED1 * Hard drive status LED | |
| Internal I/O | USB | 1 * USB2.0 (Vertical TYEP-A)2 * USB2.0 (Header) |
| COM | 4 * RS232 (COM3/4/5/6, Header, Full Lanes) | |
| Display | 1 * VGA: max resolution up to 1920*1200 @ 60Hz (wafer)1 * eDP: max resolution up to 1920*1200 @ 60Hz (Header) | |
| Audio | 1 * Front Audio (Line-Out + MIC, Header)1 * Speaker (3W (per channel) into a 4Ω Loads, wafer) | |
| GPIO | 1 * 16 bits DIO (8DI and 8DO, wafer) | |
| SATA | 4 * SATA 7P Connector | |
| LPT | 1 * LPT (Header) | |
| PS/2 | 1 * PS/2 (wafer) | |
| SMBus | 1 * SMBus (wafer) | |
| FAN | 2 * SYS FAN (Header)1 * CPU FAN (Header) | |
| Power Supply | Type | ATX |
| Power Input Voltage | AC power supply, voltage and frequency shall be based on the ATX power supply provided | |
| RTC Battery | CR2032 Coin Cell | |
| OS Support | Windows | Windows 10/11 |
| Linux | Linux | |
| Watchdog | Output | System Reset |
| Interval | Programmable 1 ~ 255 sec | |
| Mechanical | Enclosure Material | SGCC |

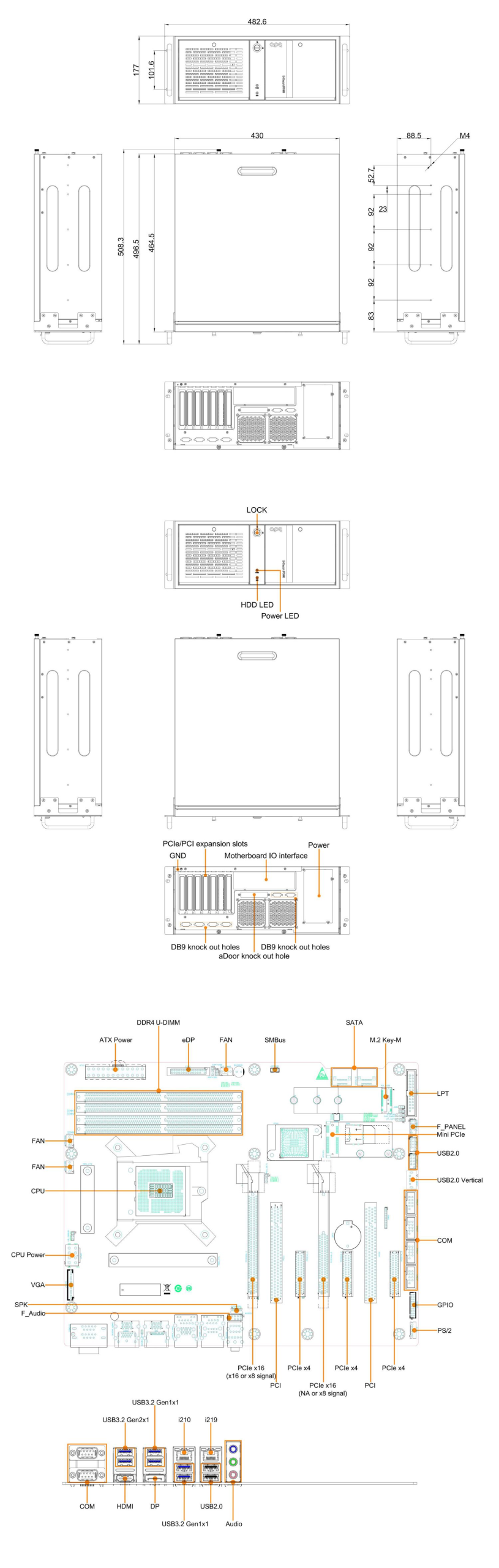

| Dimensions | 482.6mm(L) * 464.5mm(W) * 177mm(H) | |
| Mounting | Shelf mounted installation | |
| Environment | Heat Dissipation System | PWM fan cooling |
| Operating Temperature | 0 ~ 50℃ | |
| Storage Temperature | -20 ~ 70℃ | |
| Relative Humidity | 10 to 95% RH (non-condensing) | |
