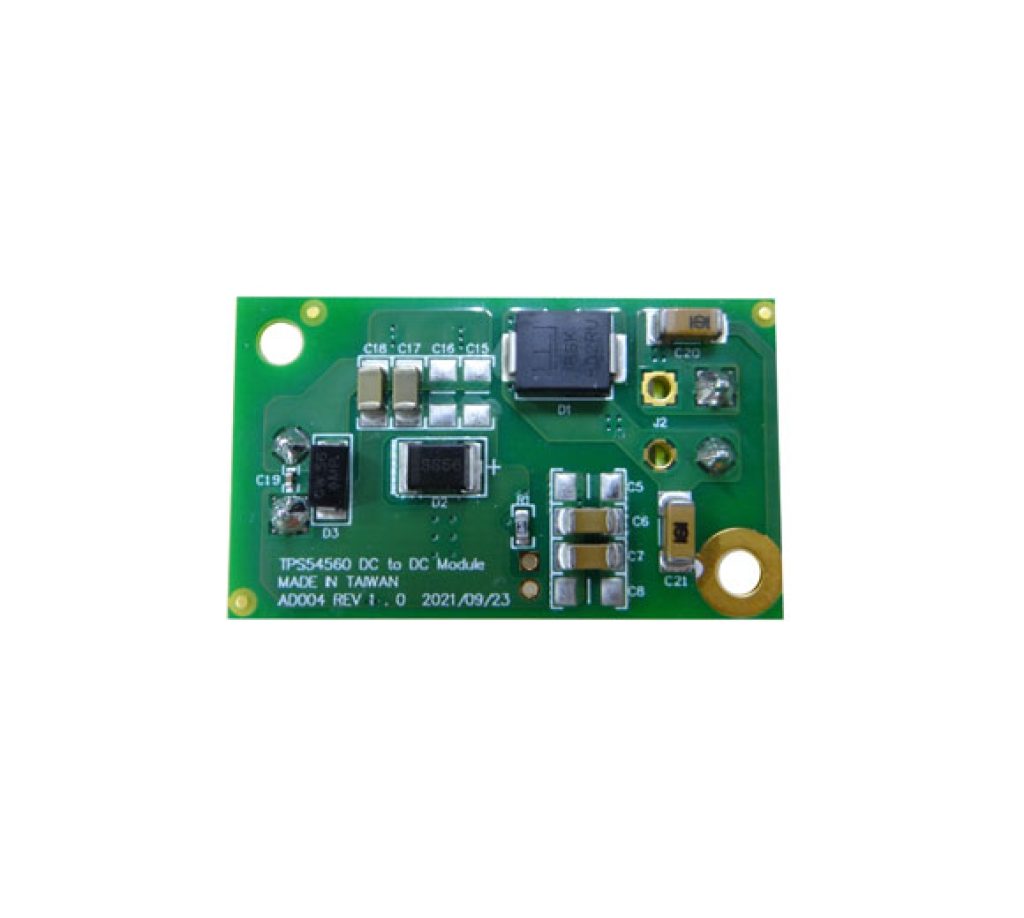

| In response to the 48V and 56V battery voltage requirements, the DCM supports up to 56V input with three types of output voltages (5V/12V/24V) for back-end devices. DCM also has smallest size and high efficiency DC to DC power converter moduleDCM-5V: Input 7~24Vdc and Output 5V@Max. 3A. DCM-12V: Input 15~36Vdc and Output 12V@Max. 2.5A. DCM-24V: Input 29~56Vdc and Output 24V@Max. 1.5A. | |

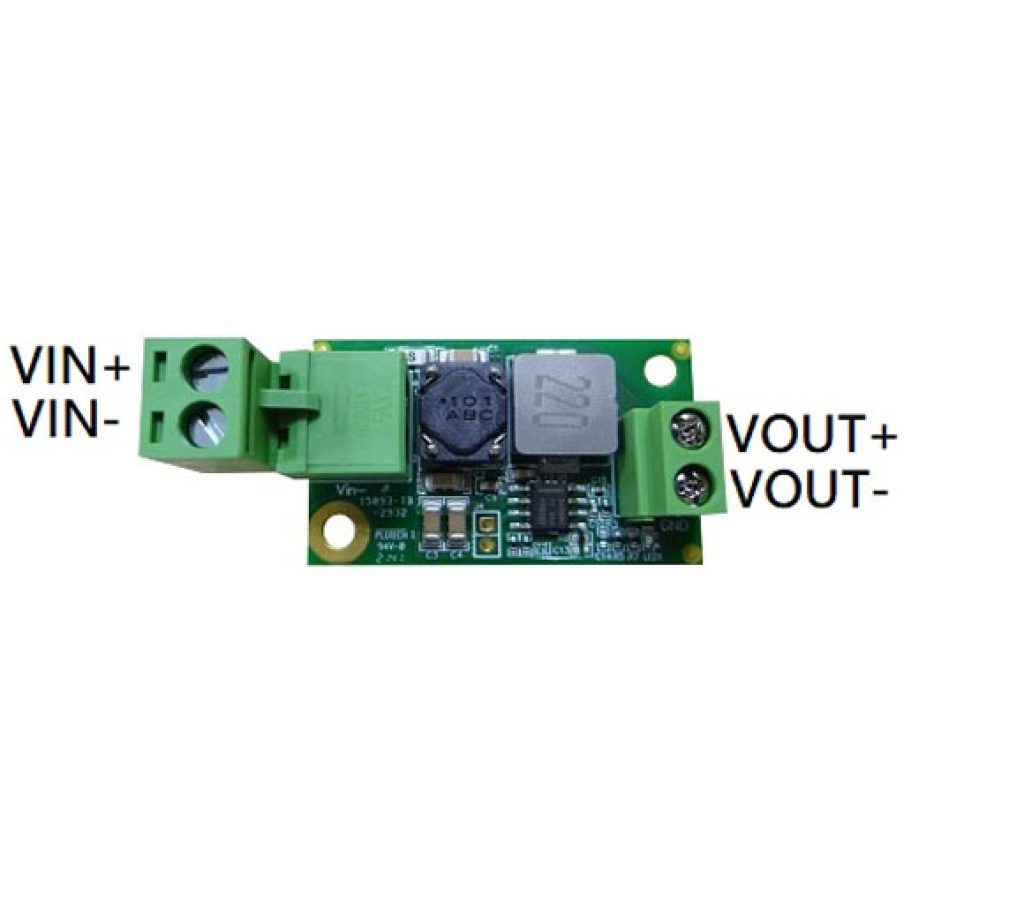

| For the application with enclosure , DCM also has the terminal socket design like ICOP’s panel PC, and operater can easy to plug-in the terminal socket after power cable locked. This terminal socket design supports three types of output voltage, too.DCM-5V-S: Input 7~24Vdc and Output 5V@Max. 3A. DCM-12V-S: Input 15~36Vdc and Output 12V@Max. 2.5A. DCM-24V-S: Input 29~56Vdc and Output 24V@Max. 1.5A. | |
| Dimension | 41 x 24 x 14mm |
| Operation temperature | -20 ~ +70°C |
产品规格
- DC to DC power module
- 7~56Vdc Step Down DC-DC Module
- Output Voltage: 5Vdc with Max. 3A / 12Vdc with Max. 2.5A / 24Vdc with Max. 1.5A
- Conversion Efficiency: Over 80% (Depended on input Voltage)
- Operation Temperature: -20 ~ +70°C
- Dimension: 41 x 24 x 14mm
| Doc. # | Subject | Date | |
|---|---|---|---|
| DCM_V1.0 datasheet | DCM_V1.0 datasheet | Datasheet | 2022-02-15 |
