产品规格

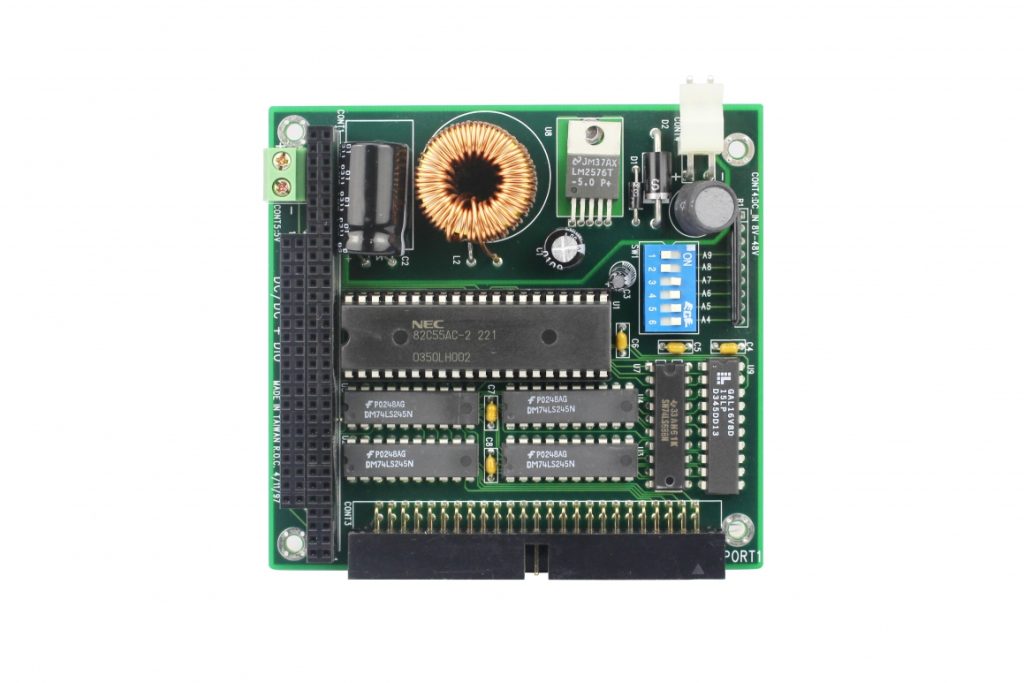

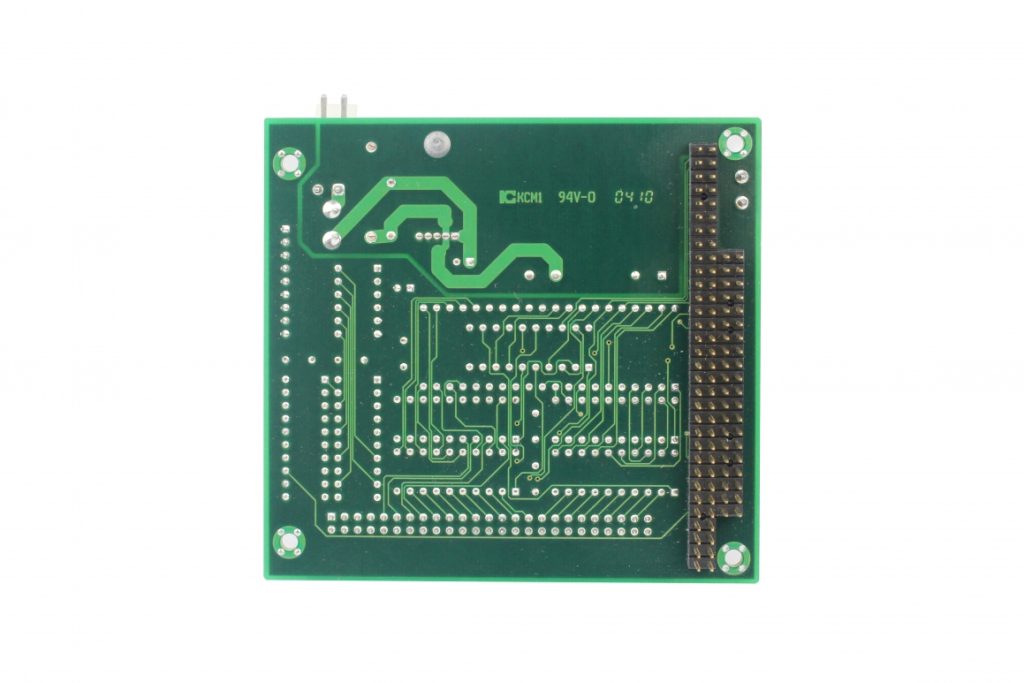

- PC/104 DC to DC + 24-bit digital I/O card
- Input : +8V to +48 VDC
- Output : 5V @ 2A
- Overload/Overheat Protection
- 24-bit ditital I/O lines , emulate 8255 PPI mode 0
- Transfer rate :300 KB/s (typical)
| 电源要求 | Input voltage range: +8V ~ +48VDC Output voltage: 5V @ 400mA Switch frequency: 52KHz Efficiency: 80% Overload protection: shutdown when reaching the thermal or current limit |
| 总线 | PC/104 standard compliant |
| 数位I/O | 24-bit digital I/O lines (1 group) Group emulates 8225PPI mode 0 Buffered circuits for higher driving capacity more than 8255 Output status readback Pin-compatible with OPTO-22 I/O module racks Transfer rate: 300 KB/sec.(typical) Digital output:Logic level 0: 0.5V max. @ 24mA sinkLogic level 1: 2.0V min. @15mA sourceDigital input:Logic level 0: 0.8V max.Logic level 1: 2.0V min. |
| 端口 | 2.54mm 50-pin box header for I/O port |
| 重量 | 110g |
| 尺寸 | 90 x 96mm (3.54 x 3.77 inches) |
| 工作温度 | -20°C ~ +60°C |
