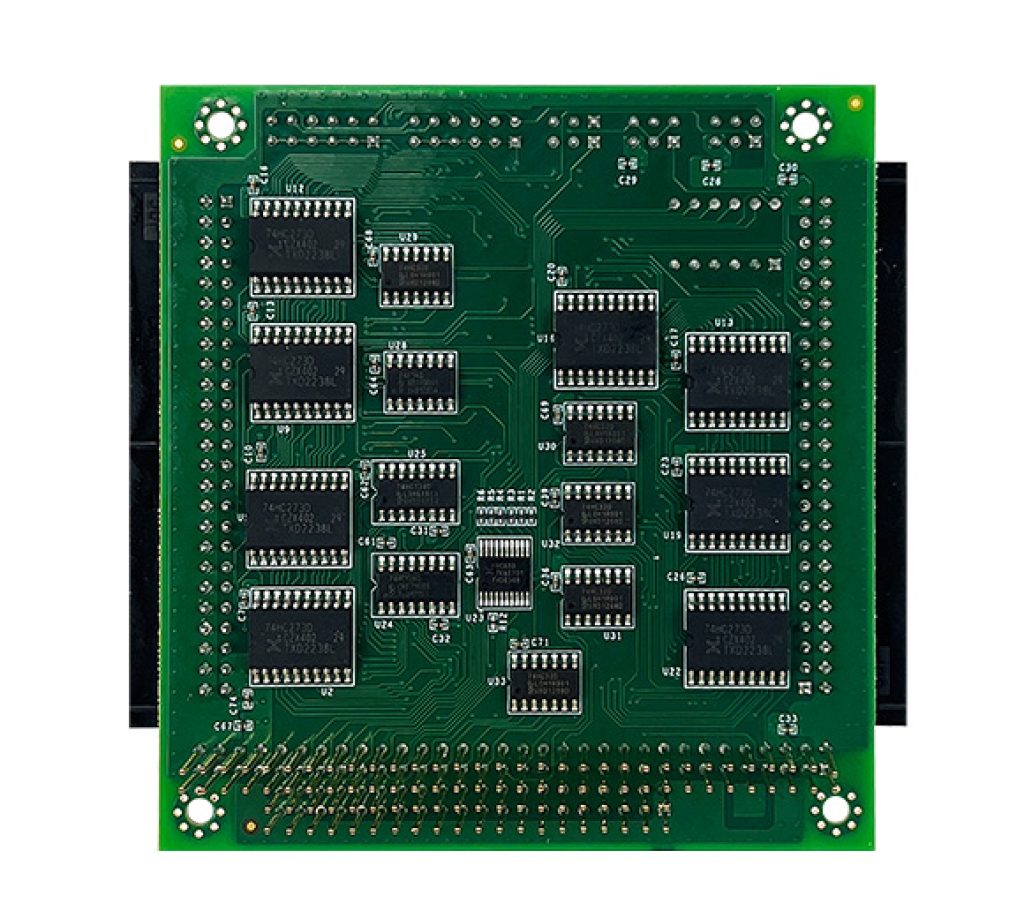

扩展板/配件 ICOP-0101-V2 PC/104 48-bit digital I/O card

The ICOP-0101-V2 is a 48-bit digital I/O module. The module can be used together with TTL level input /output circuitry. Its 48 bits are arranged in two 24-bit digital I/O groups. Each group emulates an 8255 PPI (programmable peripheral interface) mode 0 but has a higher driving capacity than the 8255 PPI. Each 24-bit group is divided into three 8-bit ports. A port can be configured to function as input or output.

48 digital I/O lines (2 groups)
Group emulates 8225 PPI mode 0
Buffered circuits for higher driving capacity than 8255 PPI
Bit 0 of port C can generate an interrupt to IRQ 2, 3, 4, 5, 6, 7
Interrupt trigger on rising / falling edge
Output status readback
Pin-compatible with OPTO-22 I/O module racks
Transfer rate: 300 KB/sec. (typical)
Digital output:
- Logic level 0: 0.5 V max. @ 24 mA sink
- Logic level 1: 2.0 V min. @ 15 mA source
Digital input:
- Logic level 0: 0.8 V max.
- Logic level 1: 2.0 V min.

Bus	PC/104 standard compliant
Connectors	2.54mm 50-pin box header for I/O port x2
Power Requirement	Single Voltage +5@220mA
Weight	95g
Board Size	90 x 96mm (3.54 x 3.77 inches)
Operating Temperature	-20°C ~ +70°C
