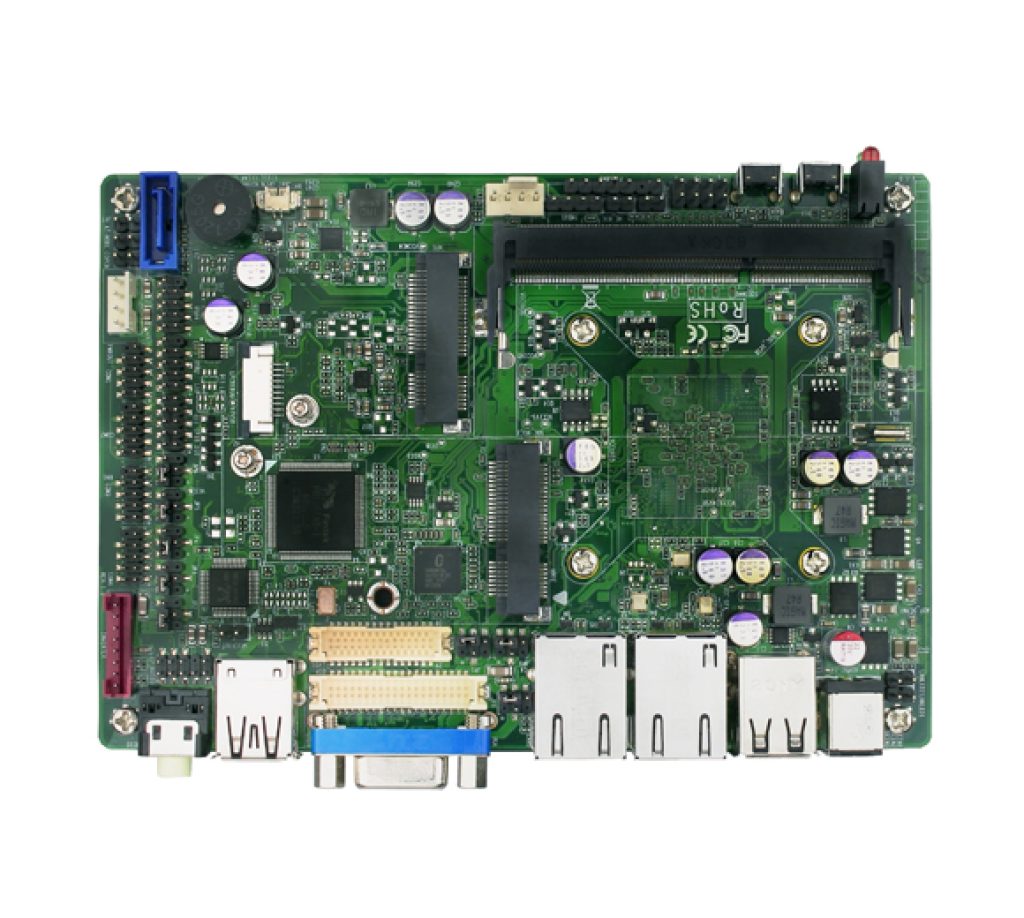

BYT-35-N2930支持2个千兆LAN、4个COM、8个USB、SMBus、8位GPIO、2个MiniPCIe、eDP、LVDS、VGA和2个存储选项SATA接口和mSATA接口，供开发使用。
方框图：
| Doc. # | Subject | Date | |
|---|---|---|---|
| BYT-35-N2930_datasheet | BYT-35-N2930 Datasheet | Datasheet | 2019-06-12 |
| Doc. # | Subject | Date | |
|---|---|---|---|
| BYT-35-N2930_UM_v1r1A | BYT-35-N2930 Manual | Manual | 2019-06-28 |
| 处理器 | Intel® Bay Trail N2930 2.16GHz (Burst) 1.83GHz Quad Core | ||||
| 系统存储器 | DDR3L 1333MHz memory support up to 8GB in SO-DIMM slot x1 | ||||
| BIOS | AMI BIOS | ||||
| 显示器 | Intel® HD Graphics with MultiDisplay support VGA: resolution support up to 1920 x 1200 eDP: resolution support up to 1920 x 1080 LVDS: resolution support up to 1920 x 1080, dual-channel 24-bit mode | ||||
| 音频 | Realtek ALC662 HD Audio | ||||
| 网路 | Realtek 8111G Gigabit Ethernet Controller | ||||
| 扩充 | MiniPCIe (full-size, share with mSATA) x1 | MiniPCIe (half size) x1 | |||
| Disk Support | mSATA x1 (share with MiniPCIe) | SATA interface x1 | |||
| I/O接口 | 8-bit GPIO x1 GigaLan x2 PS/2 interface x1 USB (ver. 3.0) x1 | COM x4 (RS232/422/485 x1) Line-out & MIC-in SMBus x1 VGA x1 | eDP x1 LVDS x1 USB (ver. 2.0) x7 | ||
| 端口 | 2-pin header for SPDIF x1 4-pin header for SMBus x1 4-pin wafer for SATA power output x1 6-pin header for PS/2 interface x1 7-pin SATA connector for SATA interface x1 9-pin header for COM x4 9-pin header for Line-out, MIC-in x1 9-pin header for USB2.0 x2 10-pin header for 8-bit GPIO x1 | 15-pin D-Sub connector for VGA x1 30-pin header for LVDS x1 40-pin header for eDP x1 Phone jack for Line-out x1 Power jack for Power input x1 RJ45 connector x2 USB connector for USB2.0 x3 USB connector for USB3.0 x1 | |||
| 功率要求 | 9 to 24VDC standard input from DC-in jack support for ATX/AT mode | ||||
| 工作温度 | 0°C to 60°C | ||||
| 尺寸 | 148 x 102 mm | ||||
| 操作系统 | Windows 10 | Windows 7 | Linux | ||
