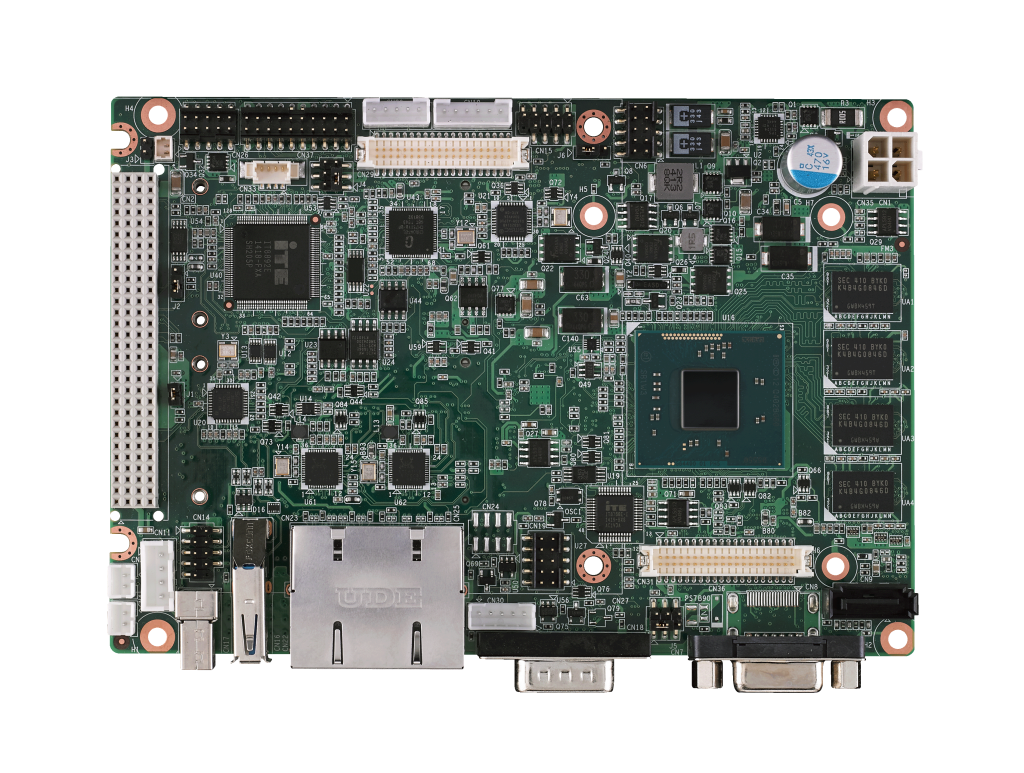

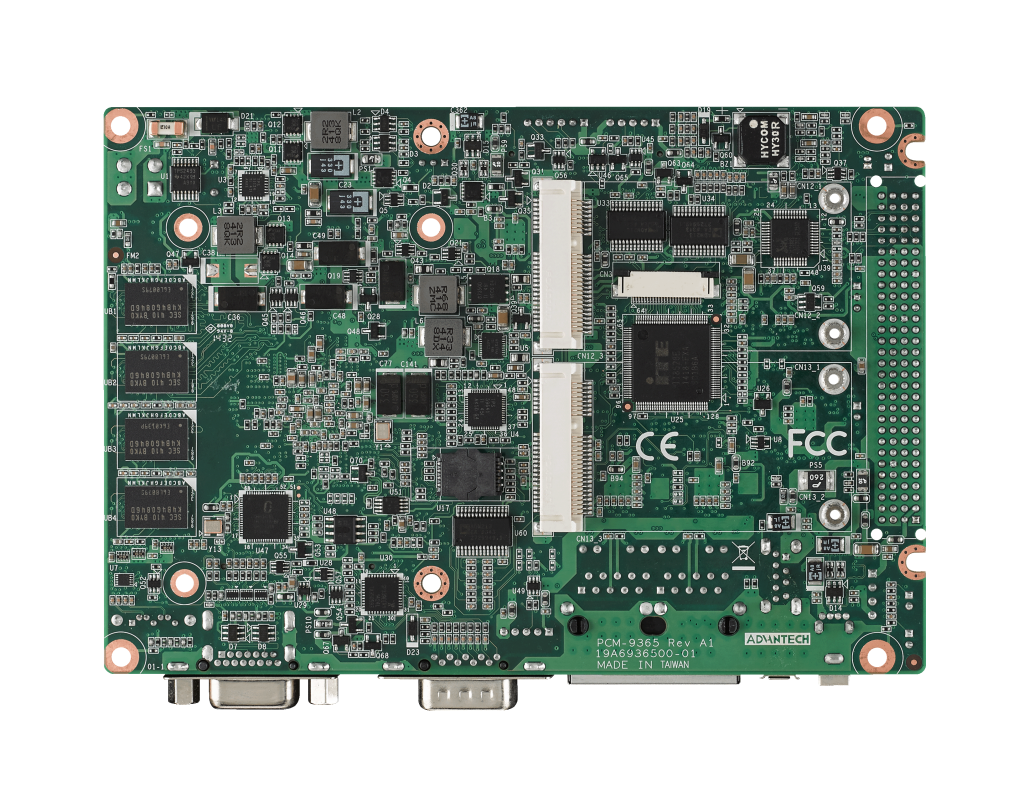

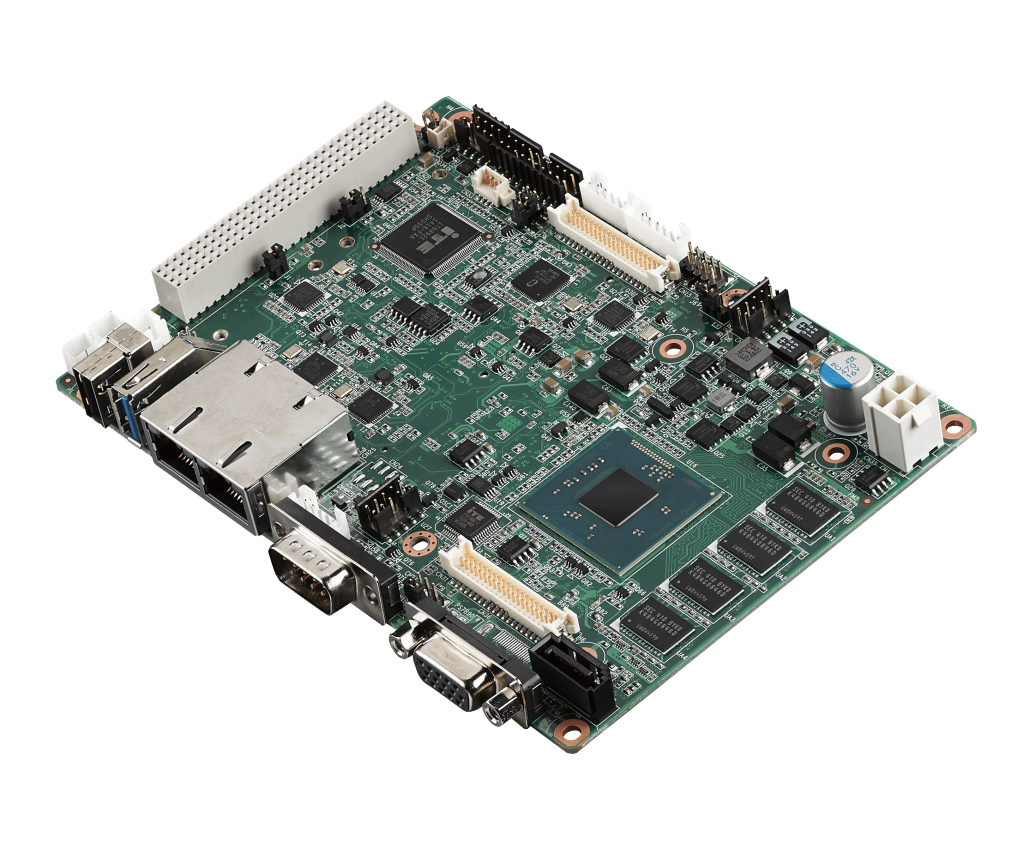

第四代ATOM PCI-104 3.5寸主板, 搭载E3825，N2930 CPU，2GB/4GB内存在板，VGA, 18/24-bit LVDS, 2GbE, Mini PCIe, PCI-104, iManager
- Intel® Atom™ E3825 & Celeron® N2930, DDR3L-1066/1333MHz 2GB/4GB板载内存
- DirectX11, OpenGL3.2, OpenCL1.1, 独立三显: VGA+LVDS/HDMI+LVDS*/双LVDS
- 支持 PCI-104扩展
- I双 GbE; 丰富的I/O 接口： 4个COM, SATA, USB3.0, SMBus/I2C, GPIO, Mini PCIe,mSATA
- 支持 iManager, SUSIAccess 和嵌入式软件 API
PCM-9365N-4GS8A1E
第四代ATOM PCI-104 3.5寸主板, 搭载E3825，N2930 CPU，2GB/4GB内存在板，VGA, 18/24-bit LVDS, 2GbE, Mini PCIe, PCI-104, iManager
支持 iManager, SUSIAccess 和嵌入式软件 API
Intel® Atom™ E3825 & Celeron® N2930, DDR3L-1066/1333MHz 2GB/4GB板载内存
DirectX11, OpenGL3.2, OpenCL1.1, 独立三显: VGA+LVDS/HDMI+LVDS*/双LVDS
支持 PCI-104扩展
I双 GbE; 丰富的I/O 接口： 4个COM, SATA, USB3.0, SMBus/I2C, GPIO, Mini PCIe,mSATA

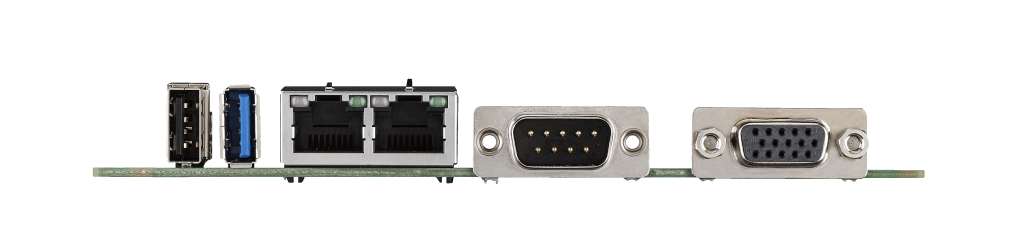

PCM-9365N-4GS8A1E Intel N29301.83GHz 7.5W Onboard Memory:4GB LVDS:48-bit / Audio / GBE*2 / VGA / RS232/422/485 *1 /RS232 *1 / USB 3.0 *1 /USB 2.0 *5 /SATA2 *1 miniPCIE 1*Full-size mSATA 1*Full-size /PC/104 *1 /POWER 2x2pin Thermal Solution: Passive /operating temperature:0 ~ 60° C
Part No. Description Quantity
PCM-9365 SBC 1
Startup Manual 1
1701200220 RS-232 COM3/4 cable, F Cable 210P-2.0/D-SUB 9P(M)2
22CM 1
1700018785 SATA 35cm power cable 1
1700019414 RS-232 COM2 Cable D-SUB 9P(M)/25P-2.0 30cm 1 1700018730 USB Cable 25P-2.0/USB-A(F)2 25CM F/9 2 1700008941 M Cable SATA 7P/SATA 7P 32CM C=R 180/180D W/Lock 1 1700019584 Audio Cable 25P-2.0/JACK*3 20cm 1
9689000002 mini Jumper pack 1
1960067897T001 Heatsink for PCM-9365 (131.24 x 69.21 x 19.5 mm) 1
1960067897T011 Heatsink for PCM-9365Z&Z2 series only
(131.24 x 69.21 x 19.5 mm) 1
